型号:WiFi520    (WiFi OTG) 牌子:LiLaiYin		WiFiOTG Turn Power On 开机说明 WIFIOTG_110-1.apk Installation智能手机软件安装说明 WiFi Connection With Mobile Phone --- WiFi连接手机使用说明 Hardwire Connection With Computer --- 有线连接电脑使用说明 WIFIOTG Charging 充电说明 Mobile Phone Charging 手机充电说明 WIFIOTG Turn Power Off 关机说明 WIFIOTG Reset 重置说明

---

iPhone --- WiFi520与苹果手机用二维码连接(WiFi520 Connect With iPhone(IOS) by QR-Code):



苹果手机IOS连接下载WIFIOTG_110-1.apk
iPhone(IOS)Download WIFIOTG_110-1.apk

---

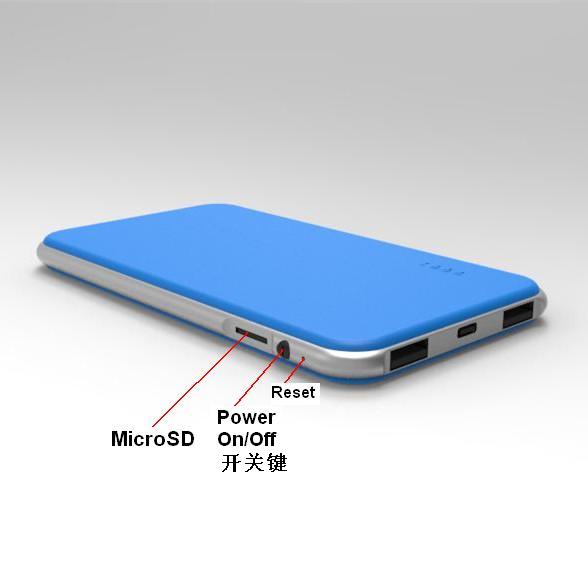

WiFiOTG Turn Power On 开机说明: 按WiFi OTG的电源开关键3秒, 看到蓝色WiFi灯亮起, 表示WiFi OTG正常启动
Press WiFi OTG On/Off Switch for 3 seconds, see the Blue LED light turn on implies WiFi OTG Power On normal.

---

Android Installation of WIFIOTG_110-1.apk 安卓智能手机软件安装说明 :-

电话手机如华为,三星,索尼,小米等先安装WIFIOTG_110-1.apk 如下:
Mobile Phone like Huawei, SamSung, Sony, XiMei Install WIFIOTG_110-1.apk :

1. 用智能手机如华为P7的二維码扫描器拍下右边的二維码,
Use Your Mobile Phone like HuaWei QR-Code Reader to scan the QR-Code :

---

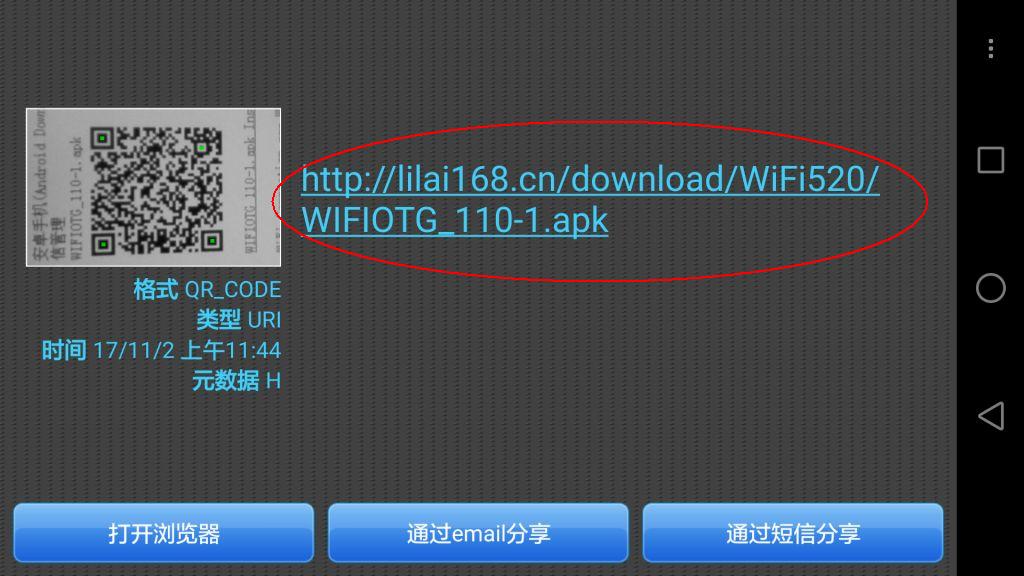

2. 在智能手机按链接Press HyperLink of http://lilai168.cn/download/WiFi520/WIFIOTG_110-1.apk


---

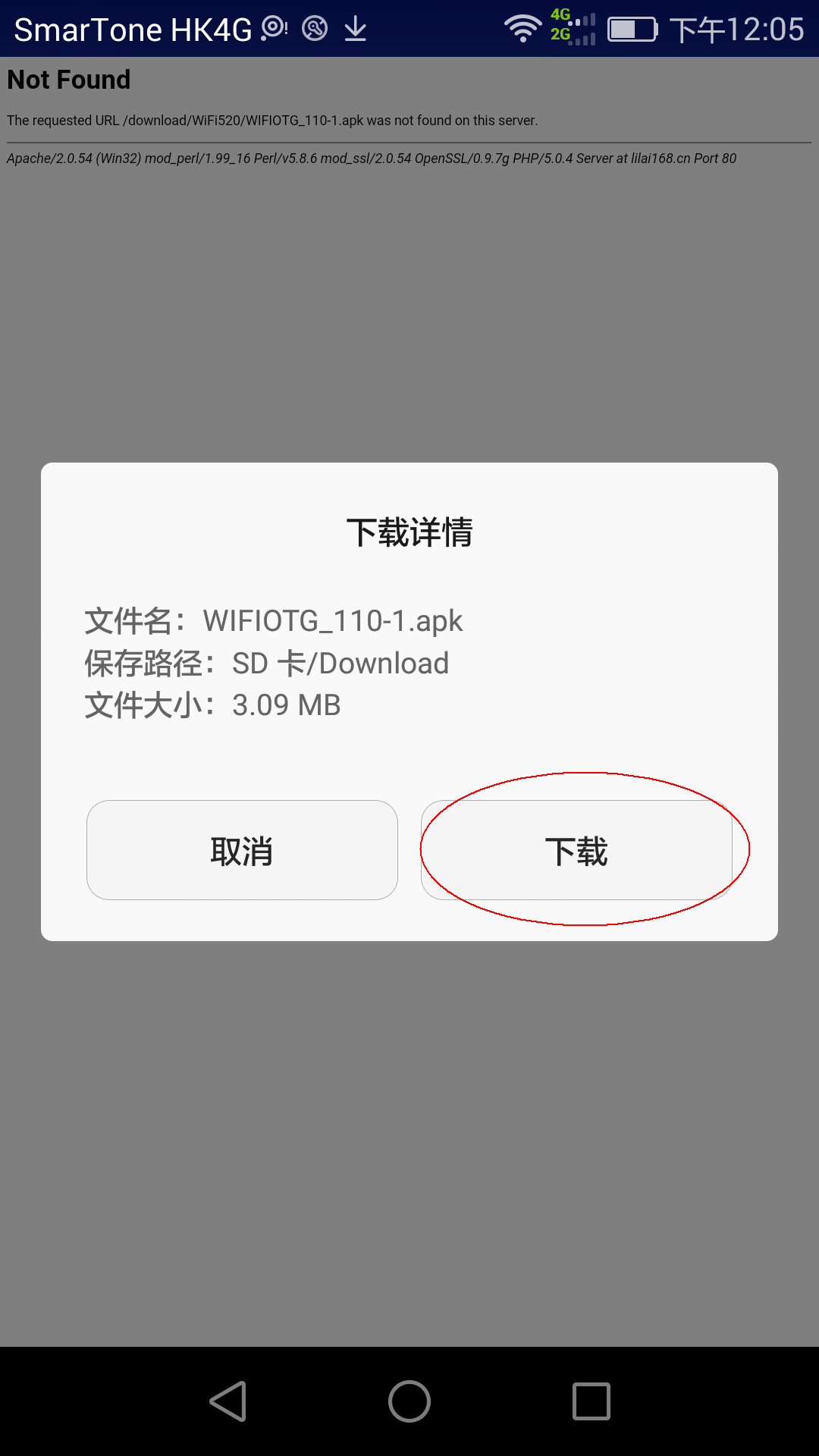

3. 在智能手机先按"下载" Press Download:


---

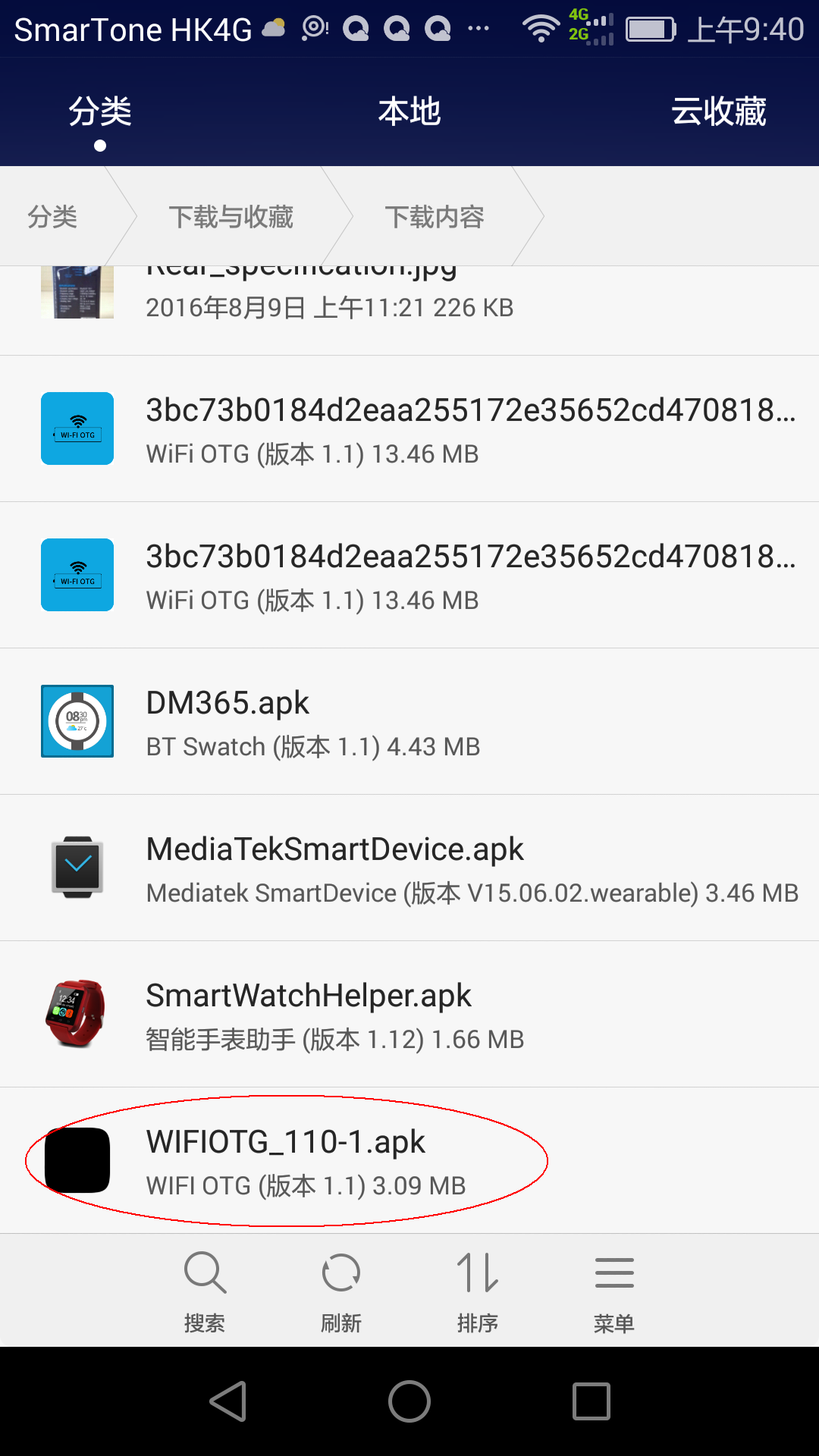

4 智能手机下载后,在下载文件夹，按"WIFIOTG_110-1.apk"安装
After Download the apk, In Download Directory, Press "WIFIOTG_110-1.apk"to install:


---

5. 安装成功,按"打开" : After Installation, Press "Open":


---

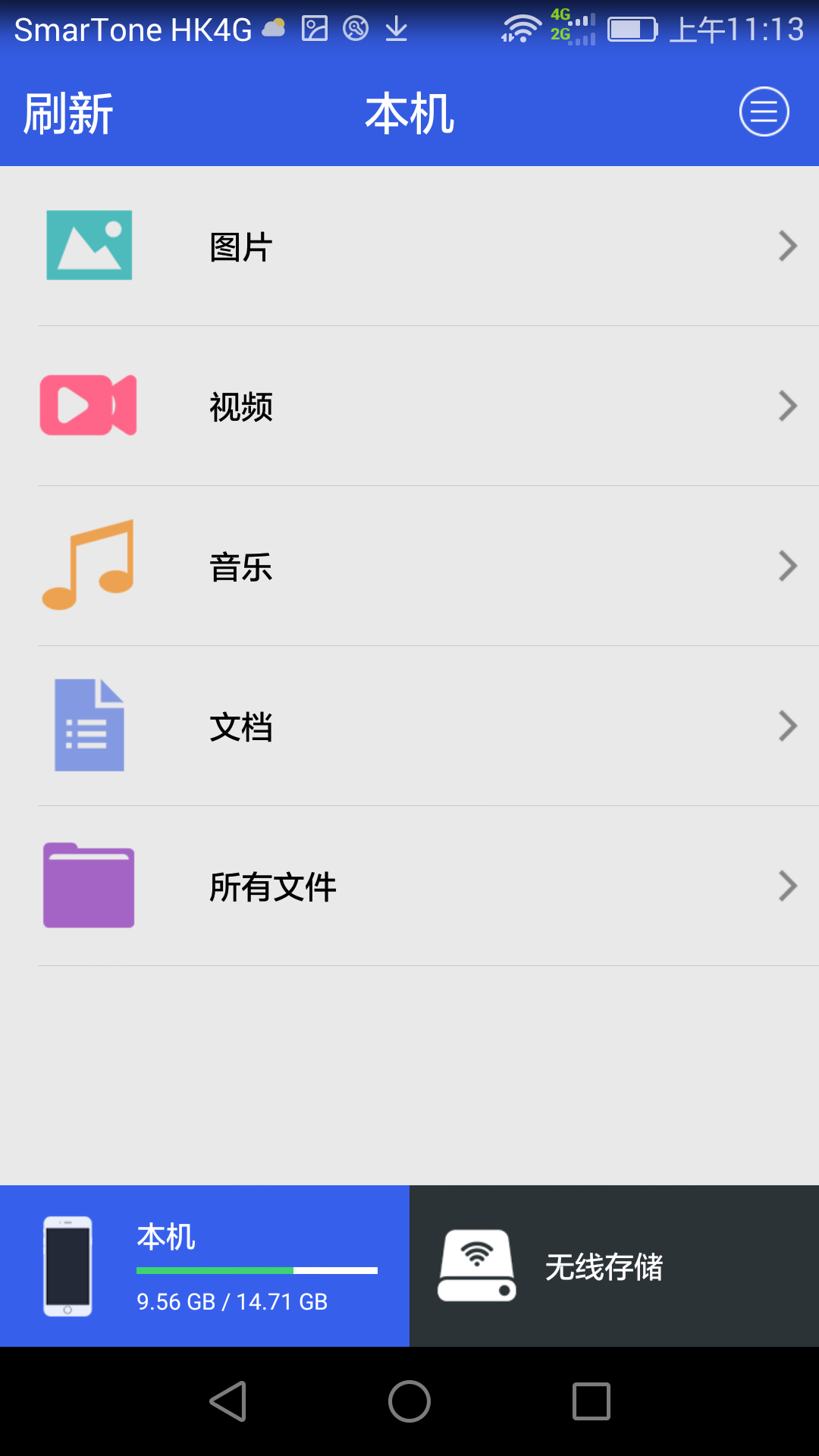

6. 先按"无线存储"， 后按右上角符号 : First Press "Wireless Storage", then follow to press upper right icon as shown :
   ==>

---

7. 在智能手机, 进入"设置", 看到 "wifistorage_22E4", WiFi连接OK

In Your Mobile Phone, go to "Setting". See "wifistorage_22E4" means WiFi Connection successful.:



---

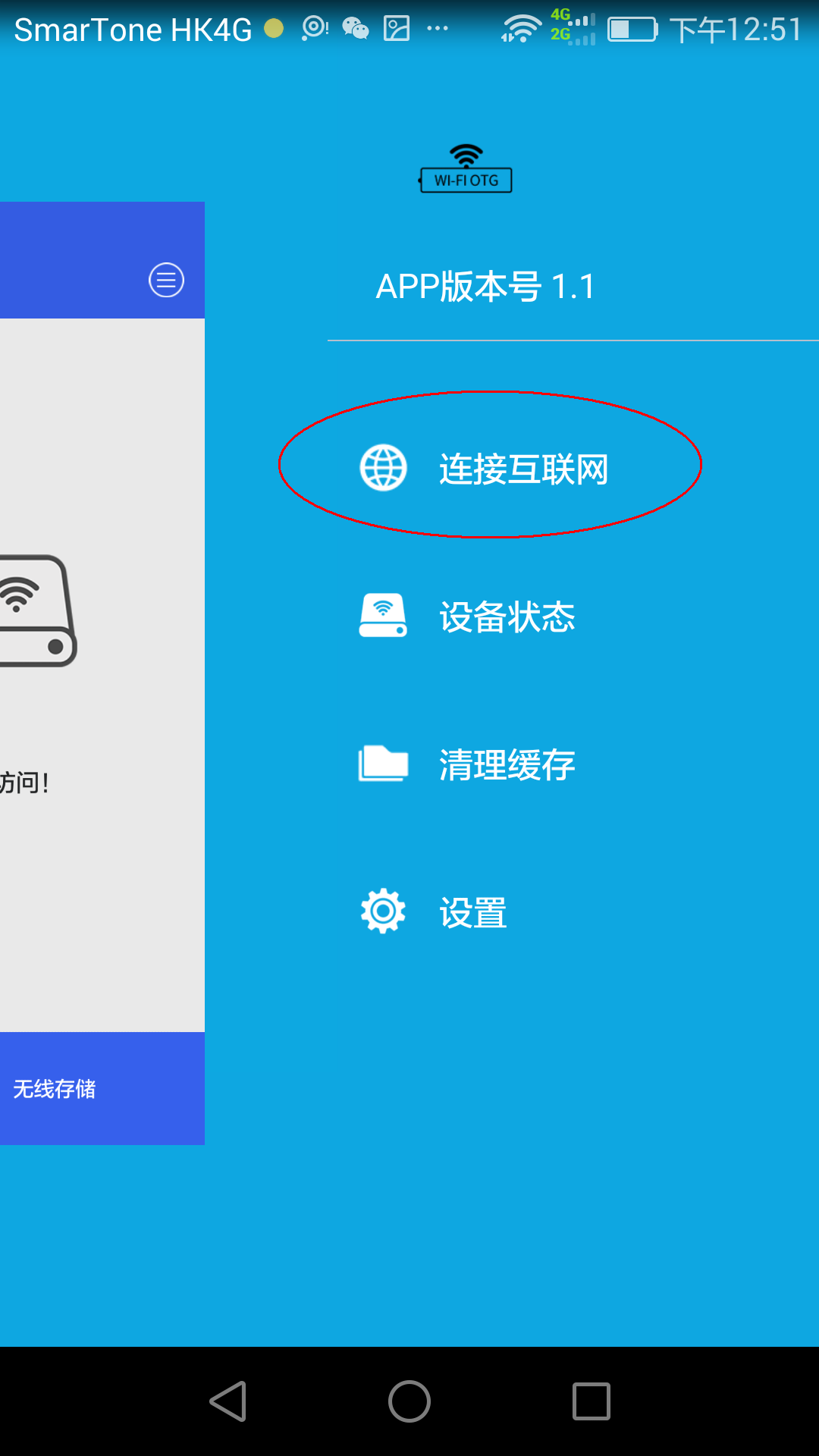

8. 由步6进入, 按"连接互联网" : Press "Connect Internet":


---

9. 输入密码后，按"连接", 手机便可经Wifi OTG(中继器), 连接上互联网:
  Press "Connect" after entering password, then mobile phone can connect to internet through Wifi OTG(Repeater):


---

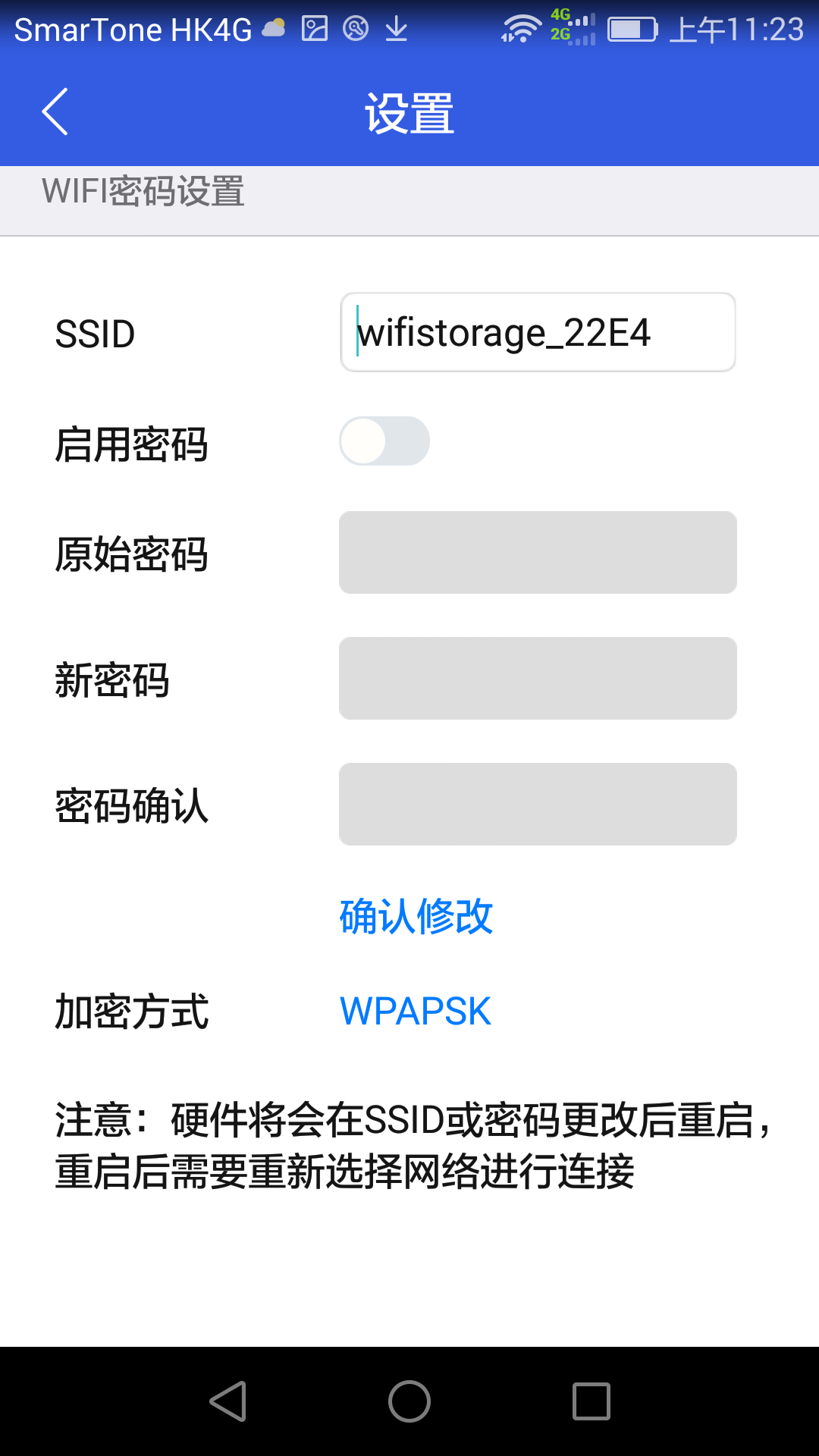

10. 若需要可以设置WiFiOTG的密码(Set WiFiOTG password if necessary):


---

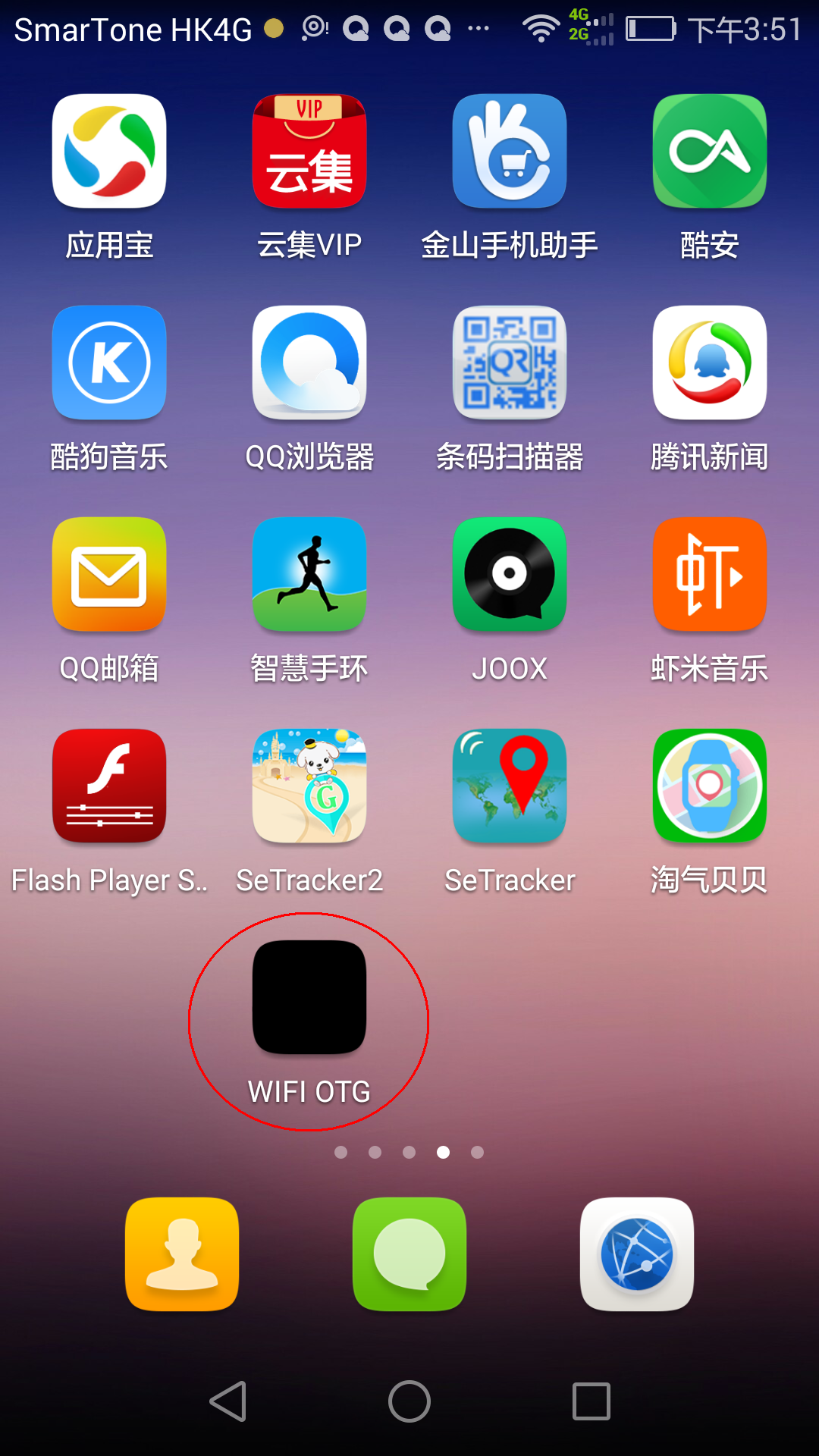

11. 在手机的应用程序,看到"WiFi OTG" 符号,安装O.K. :
In Your Mobile Phone, Seeing "WiFi OTG" icon means installation is successful :
   ==>

---

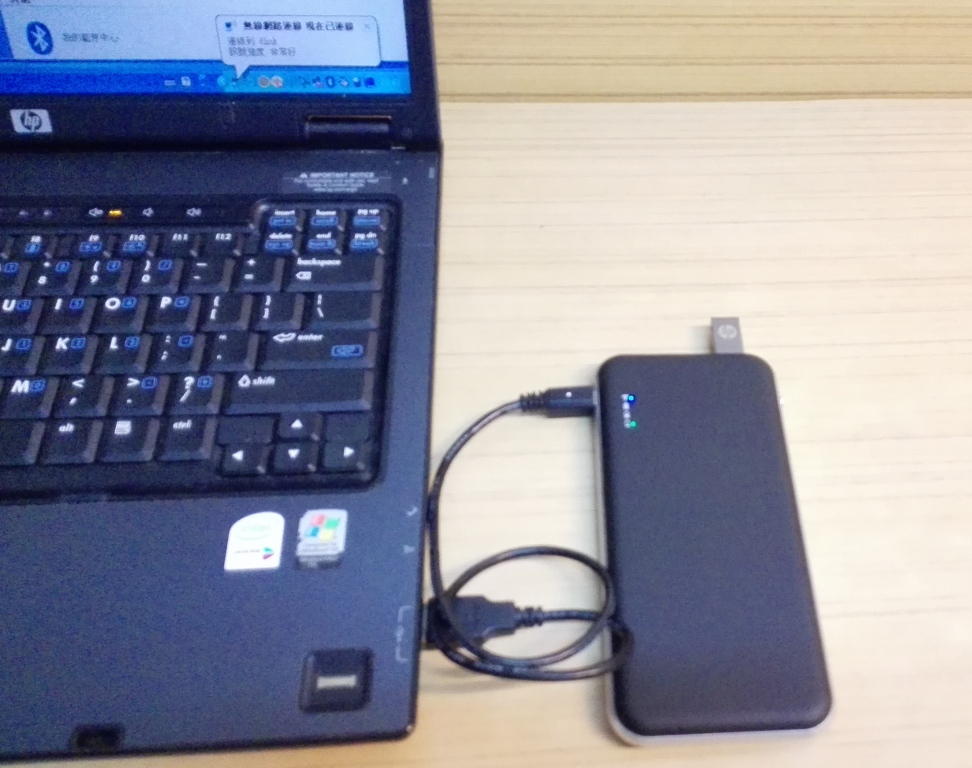

WiFiOTG与电脑连接(WiFiOTG Computer Connection) :
先按电源开关键3秒， 把WiFi关上，再用一条USB to MicroUSB线连接电脑与WiFiOTG
First Press the Power on/off switch for 3 seconds to turn off the WiFi, then use a computer cable with one end USB and the other end MicroUSB to connect computer and WiFiOTG

---

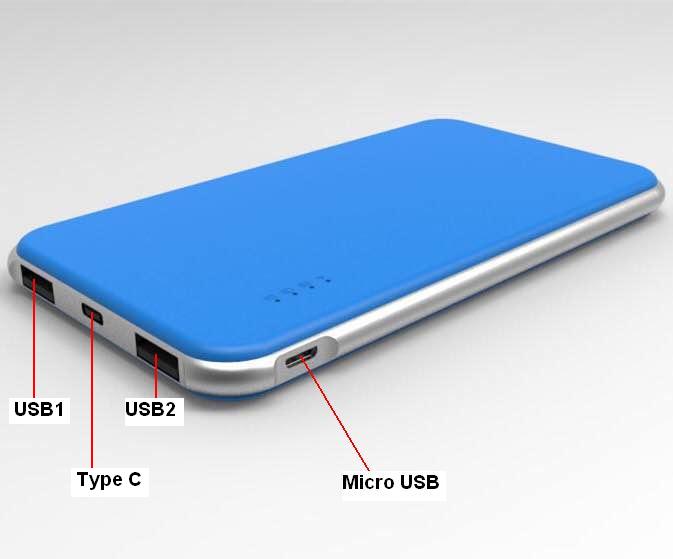

WiFiOTG Charging Mobile Phone 手机充电说明: WiFiOTG 有2个充电口，分别是MicroUSB和Type C
WiFiOTG has 2 input power charging ports, namely MicroUSB & Type C

---

WiFiOTG Charging Mobile Phone 手机充电说明: WiFiOTG有3个手机充电口，分别是USB1, USB2和Type C
WiFiOTG has 3 output power ports for mobile phone, namely USB1, USB2 & Type C

---

WiFiOTG Power Off 关机说明: 按WiFi OTG的电源开关键3秒，蓝色WiFi灯关上, 电池指示灯随后关上
Press WiFi OTG for 3 seconds, and then the blue LED light turn off, the battery LED indicator turn off after few seconds

---

WiFiOTG 重置说明: 按WiFi OTG的重置键3秒，蓝色WiFi灯关上, 电池指示灯随后关上
Press WiFi OTG Reset button for 3 seconds, and then the blue LED light turn off, the battery LED indicator turn off after few seconds

---

WiFiOTG 是目前世界上最多功能WiFi OTG

产品支持苹果手机iPhone 5, 5s, iPhone 6,7,8 三星手机 SamSung, 小米手机MEIZU, WIN手机手机、平板电脑

WiFi520 is the world latest smart WiFi OTG, with Battery Charger

Files transfer between USB thumb drive, MicroSIM card, MicroUSB or Type C direct cable.

Product support iphone 5,6,7,8, SamSung, XiMei, Meizu, HuaWei,

Windows Phone and iPad


产品参数 Specification:

1. WiFi : IEEE 802.11B/G/N 150M 2、型号 : WiFi OTG   Model 3、埠口: 1 x MicroUSB, 1 x MicroSD(128G Max.), 2 x USB , 1 x Type C   Port 4、尺寸: 156 x 74 x 14 mm   Dimension 5、容量: Li-Poly 8000mAh / 40W   Capacity 6、系统: Apple IOS 6.0 or above, Android 4.0 or above   OS

---

产品功能: Product Function : 1. 智能充电 : 自动识别安卓与苹果iPhone Type C 充电 Smart charge: Auto Detech Android & iPhone Type C charging 2. WiFi 存储: 快速处理存储资料如照片，影片，文件内容改动 WiFi Storage: Quick access WiFi Storage for viewing photos, video and editing documents. 3. 应用: i.存储资料如照片，影片，文件.      ii.充电宝 --- 8000 mAh 加智能充电功能     iii.WiFi路由器共用   Application : i.Storage for sharing photos, video backup          ii.Battery Charger --- 8000 mAh Plus Smart Charger Feature         iii.WiFi Router Sharing 4. 高容量电池: 8000 mAh, 2xUSB, 1xType C可同时充3个电话     High Capacity Battery: 8000 mAh, 2xUSB, 1xType C capable to charge 3 mobile phones 5. 移动存储 : 把WiFi关上，直接把WiFiOTG连接到电脑上，变移动存储设备     Portable Storage : Turn off the power of WiFi, Connect the WiFiOTG directly to computer,     WiFiOTG becomes a portable device    --- END ---
