本产品已成功申请专利，专利号 : 201530409991.4 发明创造名称 : 无线手表充电器 (G2-T) 欢迎外贸商，分销商，工厂等合同发展洽谈 QQ: 2675203113 冯生 微信: r897211815 QQ: 1094176081 宋小姐 微信: yaya376459	This product has registered patent，Patent Number : 201530409991.4 Product Name : Wireless Charger (G2-T) Welcome trader, Reseller, Manufactory QQ: 2675203113 Mr. Fung WeiXin: r897211815 QQ: 1094176081 Miss Song WeiXin: yaya376459
无线充电器G2-T1 (Wireless Charger)	无线充电器G2-T1 (Wireless Charger)
无线充电器G2-T1 (Wireless Charger)
无线充电器G2-T1 (Wireless Charger)	无线充电器G2-T1 (Wireless Charger)

---

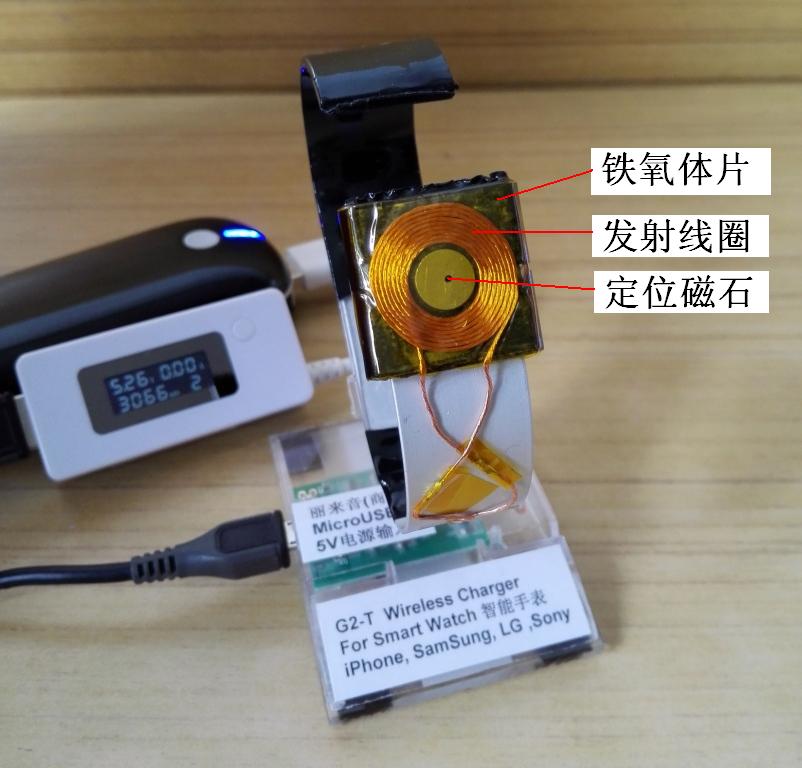

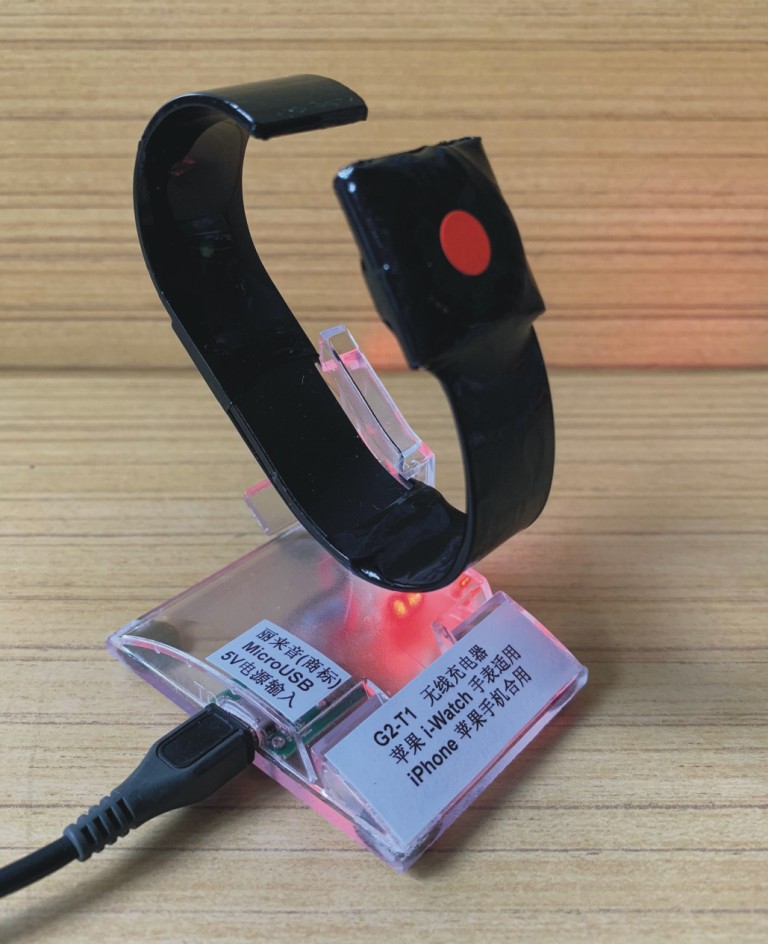

G2-T1无线充电座 Wireless Charger(透视图)

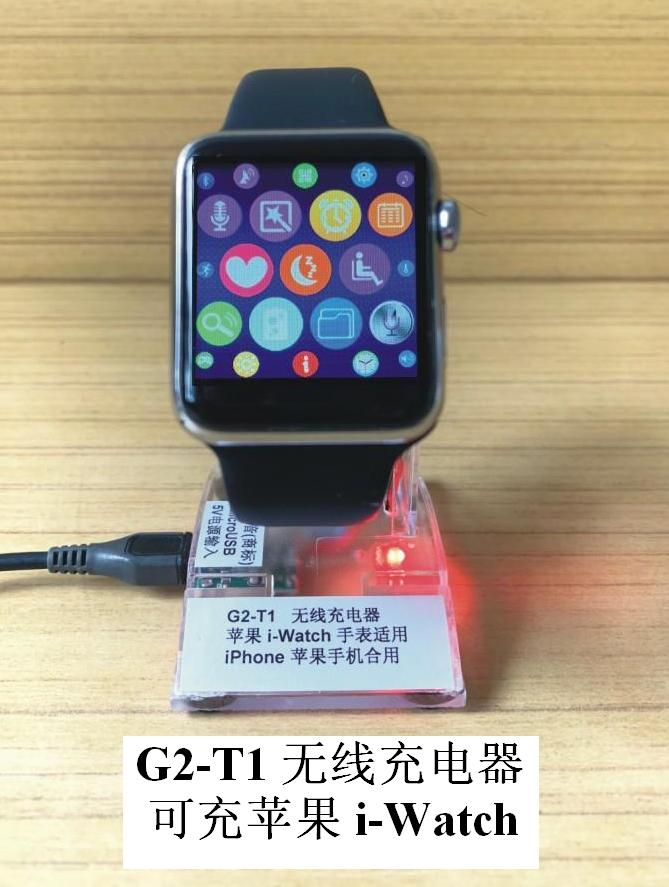

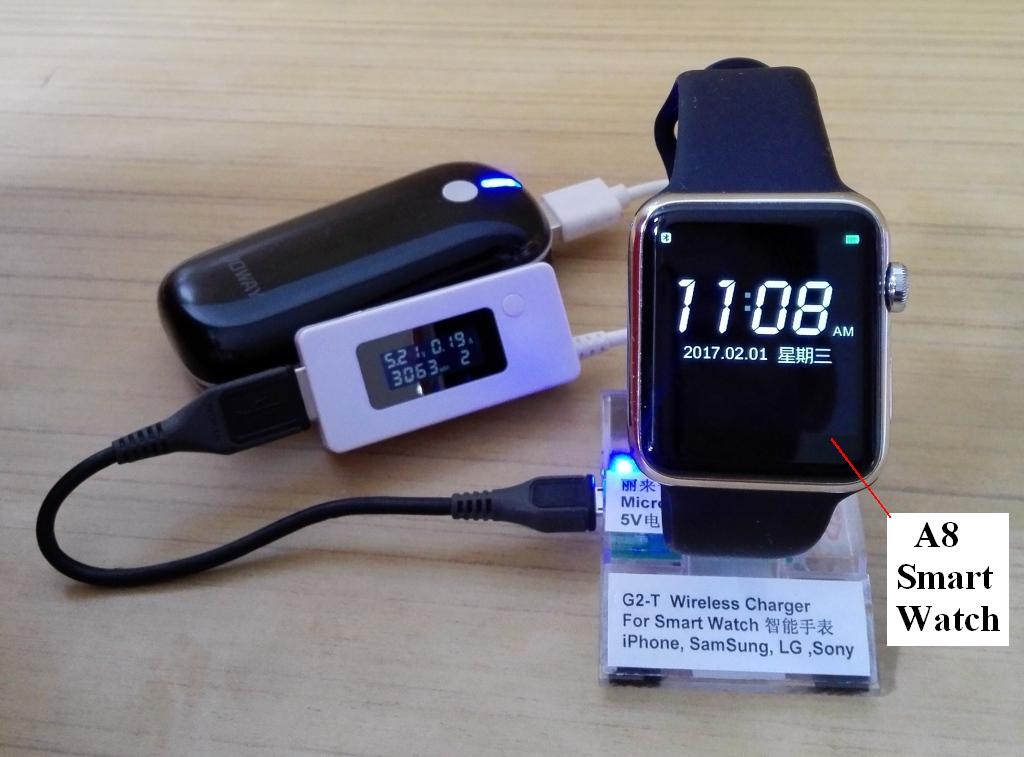

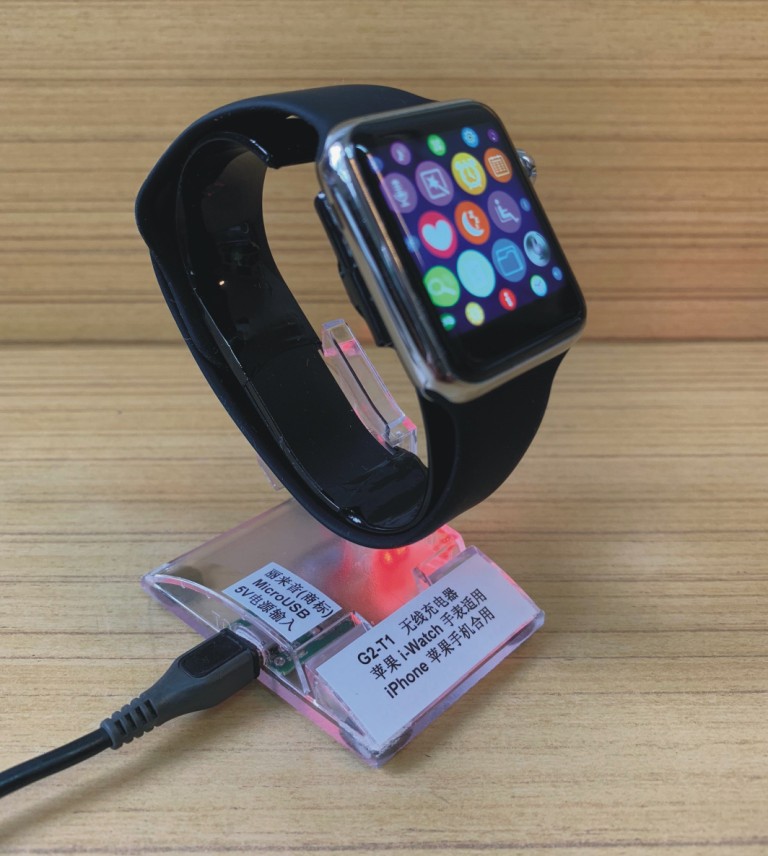

G2-T1无线充电座 Wireless Charger (智能手表充电实物图)

---

G2-T1无线充电座的好处:
1. 安全充电(无金属电线接触)
2. 小孩,老人家,空姐不怕触电
3. 外表简单美观,无电线朿缚
4. 解決金属接口接触不良问题Bad Contact

---

工作原理: Qi电磁感应(Qi Magnetic Induction)      Qi-安卓手表 G2-T2        磁共振(Magnetic Resonance) G2-T8

电磁感应原理 (Principle Of Electromagnetic Induction)

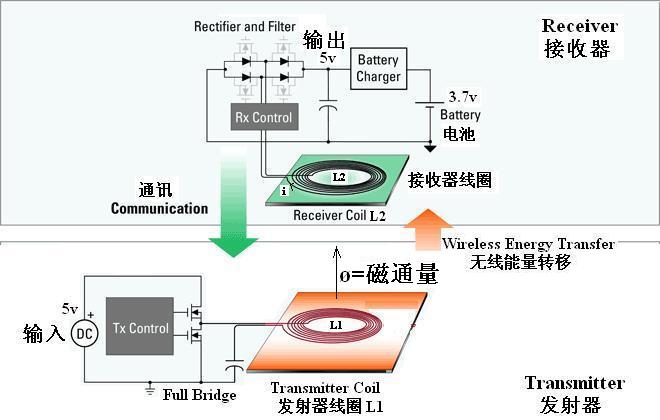

图1:无线充电系统图 (Wireless Charger System Block Diagram with Transmitter & Receiver )

根据法拉第电磁感应定律(Faraday's law of electromagnetic induction)及楞次定律(Lenz’s law), 得如下公式:

    感应电流 = 磁通量变动率 (rate of change of magnetic flux)

(微分方程）i = - dø/dt where ø=Magnetic Flux(磁通量)


-负号表示L2感应电流i方向图1
与L1的磁通量方向相反,t=时间(秒)

---

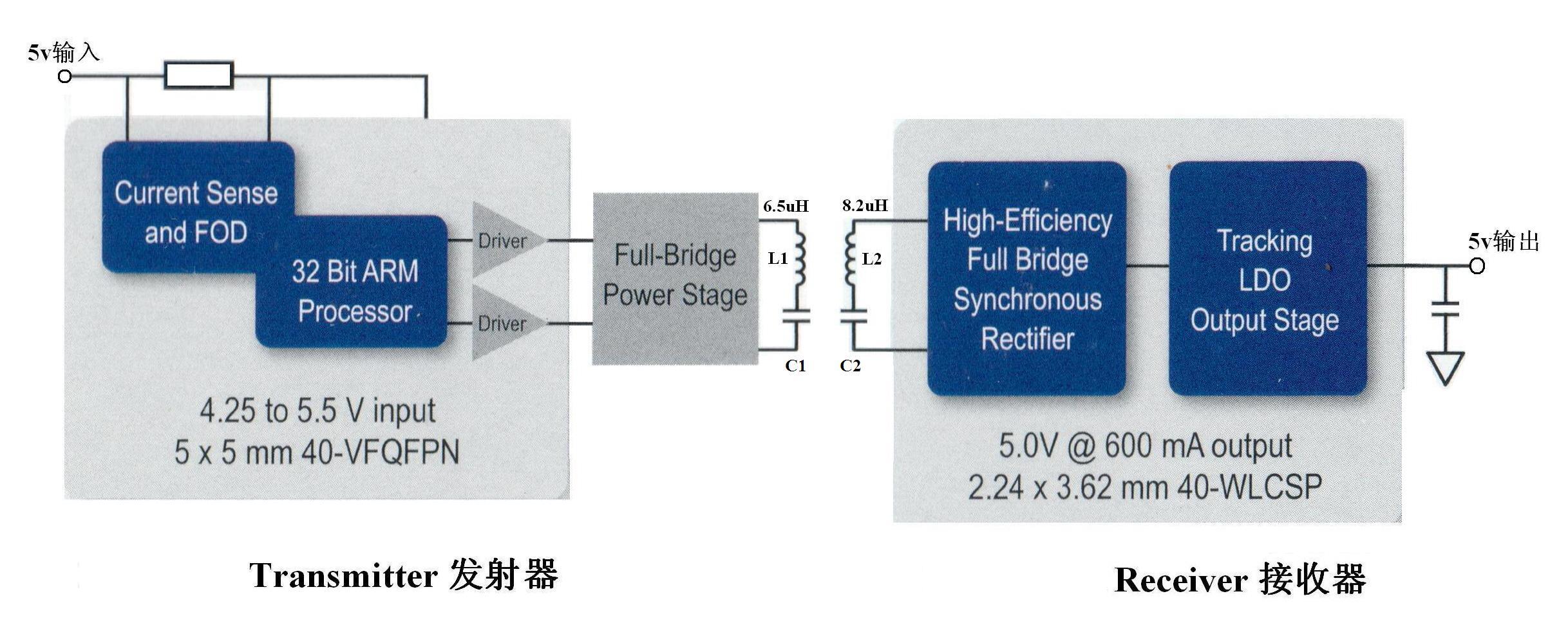

电磁感应原理方块图 (Electromagnetic Induction Block Diagram)

---
